產（chǎn）品名稱：
美製JIC外螺紋/ 重係列（liè）法蘭（lán）直接頭
產品係列搜索
請選擇您想要尋找的相關產品係列
產品描述

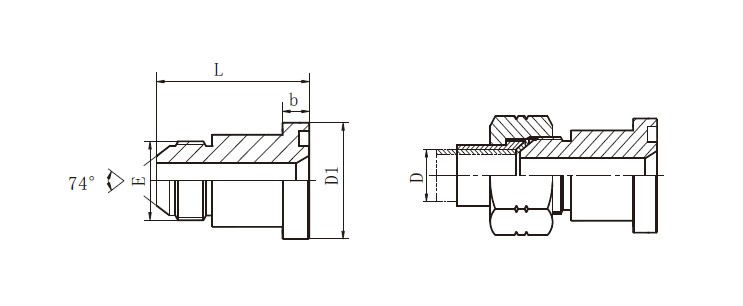

| 訂貨號 | 螺 紋 | 法蘭型號 | O形圈 | 尺 寸 | |||
| E | b | D1 | L | ||||
| AJFH-08 | 3/4"X16 | 1/2" | O210 | 7.75 | 31.7 | 47.5 | |
| AJFH-10-08 | 7/8"X14 | 1/2" | O210 | 7.75 | 31.7 | 50 | |
| AJFH-10-12 | 7/8"X14 | 3/4" | O214 | 8.76 | 41.3 | 55 | |
| AJFH-12 | 1.1/16"X12 | 3/4" | O214 | 8.76 | 41.3 | 56.7 | |
| AJFH-12-16 | 1.1/16"X12 | 1" | O219 | 9.53 | 47.6 | 61.5 | |
| AJFH-16-12 | 1.5/16"X12 | 3/4" | O214 | 8.76 | 41.3 | 57.8 | |
| AJFH-16 | 1.5/16"X12 | 1" | O219 | 9.53 | 47.6 | 62.8 | |
| AJFH-16-20 | 1.5/16"X12 | 1.1/4" | O222 | 10.29 | 54 | 67.7 | |
| AJFH-20-16 | 1.5/8"X12 | 1" | O219 | 9.53 | 47.6 | 64 | |
| AJFH-20 | 1.5/8"X12 | 1.1/4" | O222 | 10.29 | 54 | 68.9 | |
| AJFH-20-24 | 1.5/8"X12 | 1.1/2" | O225 | 12.57 | 63.5 | 73.5 | |
| AJFH-24-20 | 1.7/8"X12 | 1.1/4" | O222 | 10.29 | 54 | 72 | |
| AJFH-24 | 1.7/8"X12 | 1.1/2" | O225 | 12.57 | 63.5 | 76.7 | |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
