產品名（míng）稱：
英錐管螺紋直接頭（tóu）
產品係列搜索
請選擇您（nín）想要尋找的相關產品係列
產品描述

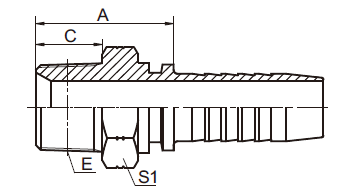

| 訂貨號 | 螺紋E | 膠（jiāo） 管 | 尺 寸 | |||||||||
| 公稱內徑 | 標號 | A | C | S1 | ||||||||
| BT-04-04 | R1/4"X19 | 6 | 4 | 27 | 14.5 | 14 | ||||||
| BT-04-05 | R1/4"X19 | 8 | 5 | 25 | 15.4 | 14 | ||||||
| BT-04-06 | R1/4"X19 | 10 | 6 | 27 | 14.5 | 17 | ||||||
| BT-06-04 | R3/8"X19 | 6 | 4 | 27.5 | 15 | 17 | ||||||
| BT-06-05 | R3/8"X19 | 8 | 5 | 26.5 | 15 | 17 | ||||||
| BT-06-06 | R3/8"X19 | 10 | 6 | 27.5 | 15 | 17 | ||||||
| BT-06-08 | R3/8"X19 | 12 | 8 | 30 | 15 | 19 | ||||||
| BT-08-06 | R1/2"X14 | 10 | 6 | 34.5 | 20 | 22 | ||||||
| BT-08-08 | R1/2"X14 | 12 | 8 | 35 | 20 | 22 | ||||||
| BT-08-10 | R1/2"X14 | 16 | 10 | 38 | 20 | 22 | ||||||
| BT-08-12 | R1/2"X14 | 20 | 12 | 38 | 20 | 27 | ||||||
| BT-12-08 | R3/4"X14 | 12 | 8 | 37 | 20 | 27 | ||||||
| BT-12-10 | R3/4"X14 | 16 | 10 | 38 | 20 | 27 | ||||||
| BT-12-12 | R3/4"X14 | 20 | 12 | 38.5 | 20 | 27 | ||||||
| BT-12-16 | R3/4"X14 | 25 | 16 | 39.5 | 20 | 32 | ||||||
| BT-16-12 | R1"X11 | 20 | 12 | 44 | 25.5 | 36 | ||||||
| BT-16-16 | R1"X11 | 25 | 16 | 45 | 25.5 | 36 | ||||||
| BT-20-20 | R1.1/4"X11 | 32 | 20 | 49.5 | 26.5 | 46 | ||||||
| BT-24-24 | R1.1/2"X11 | 40 | 24 | 52.5 | 26.5 | 50 | ||||||
| BT-32-24 | R2"X11 | 40 | 24 | 57 | 30 | 65 | ||||||
| BT-32-32 | R2"X11 | 50 | 32 | 57 | 30 | 65 | ||||||
