產品名稱：

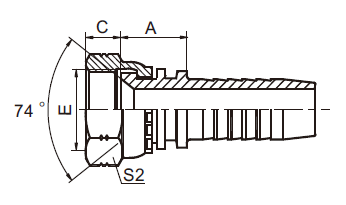

JIC內螺紋74°內錐麵（miàn）直接頭
產品係列搜索
請選擇您想要（yào）尋找的相關產品係列
產品描述
| 訂貨號 | 螺紋E | 膠 管（guǎn） | 尺 寸 | |||||||||
| 公稱內徑 | 標號 | A | C | S2 | ||||||||
| JFA-04-04 | 7/16"X20 | 6 | 4 | 15 | 9 | 15 | ||||||
| JFA-05-04 | 1/2"X20 | 6 | 4 | 15.5 | 9.5 | 17 | ||||||
| JFA-06-04 | 9/16"X18 | 6 | 4 | 15.5 | 10.5 | 19 | ||||||
| JFA-06-06 | 9/16"X18 | 10 | 6 | 15.5 | 10.5 | 19 | ||||||
| JFA-08-06 | 3/4"X16 | 10 | 6 | 17.5 | 11 | 24 | ||||||
| JFA-08-08 | 3/4"X16 | 12 | 8 | 18 | 11 | 24 | ||||||
| JFA-08-10 | 3/4"X16 | 16 | 10 | 19.5 | 11 | 24 | ||||||
| JFA-10-08 | 7/8"X14 | 12 | 8 | 18.5 | 13 | 27 | ||||||
| JFA-10-10 | 7/8"X14 | 16 | 10 | 20 | 13 | 27 | ||||||
| JFA-12-12 | 1.1/16"X12 | 20 | 12 | 21.5 | 15 | 32 | ||||||
| JFA-16-12 | 1.5/16"X12 | 20 | 12 | 18.5 | 16 | 41 | ||||||
| JFA-16-16 | 1.5/16"X12 | 25 | 16 | 23 | 16 | 41 | ||||||
| JFA-16-20 | 1.5/16"X12 | 32 | 20 | 24 | 16 | 41 | ||||||
| JFA-20-20W | 1.5/8"X12 | 32 | 20 | 26 | 17 | 50 | ||||||
