產品名稱：
SAE 法蘭 3000 PSI 45°彎接頭
產品係列搜索
請選擇您想要尋找的相關產品係列
產品描述

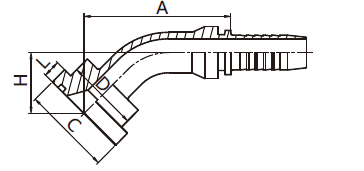

| 訂貨號 | 法蘭型號 | 膠 管 | 尺 寸 | ||||||||||||||
| 公稱內徑 | 標號 | A | C | D | H | L | |||||||||||
| FLB-08-08 | 1/2" | 12 | 8 | 58.2 | 30.2 | 24 | 23.3 | 6.73 | |||||||||
| FLB-12-08 | 3/4" | 12 | 8 | 58.9 | 38.1 | 31.7 | 24 | 6.73 | |||||||||
| FLB-12-10 | 3/4" | 16 | 10 | 69.6 | 38.1 | 31.7 | 25.3 | 6.73 | |||||||||
| FLB-12-12 | 3/4" | 20 | 12 | 76.3 | 38.1 | 31.7 | 28.9 | 6.73 | |||||||||
| FLB-16-12 | 1" | 20 | 12 | 76.3 | 44.4 | 38 | 28.9 | 8 | |||||||||
| FLB-16-16 | 1" | 25 | 16 | 83.9 | 44.4 | 38 | 29.7 | 8 | |||||||||
| FLB-16-20 | 1" | 32 | 20 | 94.5 | 44.4 | 38 | 33.8 | 8 | |||||||||
| FLB-20-16 | 1.1/4" | 25 | 16 | 85.2 | 50.8 | 43 | 29.7 | 8 | |||||||||
| FLB-20-20 | 1.1/4" | 32 | 20 | 94.5 | 50.8 | 43 | 33.8 | 8 | |||||||||
| FLB-24-20 | 1.1/2" | 32 | 20 | 95.9 | 60.3 | 50 | 35.2 | 8 | |||||||||
| FLB-24-24 | 1.1/2" | 40 | 24 | 109.9 | 60.3 | 50 | 39.1 | 8 | |||||||||
| FLB-32-24 | 2" | 40 | 24 | 109.9 | 71.4 | 62 | 39.1 | 9.53 | |||||||||
| FLB-32-32 | 2" | 50 | 32 | 129.3 | 71.4 | 62 | 46.3 | 9.53 | |||||||||
