產品名稱：
公製卡套NPT三通
產品係列搜索
請選擇您想要尋找的相關產品係列
產品描述

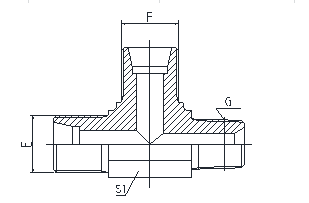

| 訂貨號 | 螺 紋 | 鋼管外徑 | 尺 寸 | 工作壓力 MPa | ||||||
| E ,F | G | D1 , D2 | l1,l2 | L1,L2 | L3 | S1 | S2,S3,S4 | |||
| T00N-12-12-04 | M12X1.5 | Z1/4"X18 | 6 | 12 | 27 | 25.5 | 12 | 14 | 25 輕係列 L | |
| T00N-14-14-04 | M14X1.5 | Z1/4"X18 | 8 | 14 | 29 | 25.5 | 12 | 17 | ||
| T00N-16-16-06 | M16X1.5 | Z1/4"X18 | 10 | 15 | 30 | 25.5 | 14 | 19 | ||
| T00N-18-18-06 | M18X1.5 | Z3/8"X18 | 12 | 17 | 32 | 31.0 | 17 | 22 | ||
| T00N-22-22-08 | M22X1.5 | Z1/2"X14 | 15 | 21 | 36 | 36.7 | 19 | 27 | ||
| T00N-26-12-26 | M26X1.5 | Z3/4"X14 | 18 | 23.5 | 40 | 44.0 | 24 | 32 | ||
| T00N-30-12-30 | M30X2 | Z3/4"X14 | 22 | 27.5 | 44 | 44.0 | 27 | 36 | 16 輕係列 L | |
| T00N-36-16-36 | M36X2 | Z1"X11.5 | 28 | 30.5 | 47 | 50.0 | 36 | 41 | ||
| T00N-45-20-45 | M45X2 | Z1.1/4"X11.5 | 35 | 34.5 | 56 | 54.5 | 41 | 50 | ||
| T00N-52-24-52 | M52X2 | Z1.1/2"X11.5 | 42 | 40 | 63 | 59.5 | 50 | 60 | ||
| T11N-14-04-14 | M14X1.5 | Z1/4"X18 | 6 | 16 | 31 | 25.5 | 12 | 17 | 63 重係列 S | |
| T11N-16-04-16 | M16X1.5 | Z1/4"X18 | 8 | 17 | 32 | 25.5 | 14 | 19 | ||
| T11N-18-06-18 | M18X1.5 | Z3/8"X18 | 10 | 17.5 | 34 | 31.0 | 17 | 22 | ||
| T11N-20-06-20 | M20X1.5 | Z3/8"X18 | 12 | 21.5 | 38 | 31.0 | 17 | 24 | ||
| T11N-22-08-22 | M22X1.5 | Z1/2"X14 | 14 | 22 | 40 | 36.7 | 19 | 27 | ||
| T11N-24-08-24 | M24X1.5 | Z1/2"X14 | 16 | 24.5 | 43 | 36.7 | 24 | 30 | 40 重係列 S | |
| T11N-30-12-30 | M30X2 | Z3/4"X14 | 20 | 26.5 | 48 | 44.0 | 27 | 36 | ||
| T11N-36-16-36 | M36X2 | Z1"X11.5 | 25 | 30 | 54 | 50.0 | 36 | 46 | ||
| T11N-42-20-42 | M42X2 | Z1.1/4"X11.5 | 30 | 35.5 | 62 | 54.5 | 41 | 50 | ||
| T11N-52-24-52 | M52X2 | Z1.1/2"X11.5 | 38 | 41 | 72 | 59.5 | 50 | 60 | 31.5重係列S | |
注：如需帶卡套及螺母整套訂貨，則請在代號後加“/A”,如T00N-36/A。如需不鏽鋼304材料，請在訂貨號後加SS，不鏽鋼316L材料，請在訂貨號後加SSB。
